Latte

Latte is a single-header C++17 telemetry framework. Raw x86_64 TSC reads into per-thread, lock-free ring buffers: tens of cycles per sample, no blocking, every statistic deferred to a cold path. std::chrono::now() runs ~150 cycles, two per measurement; the alternatives hash strings or bump shared counters on the hot path, so measuring thread A slows thread B.

01How it works

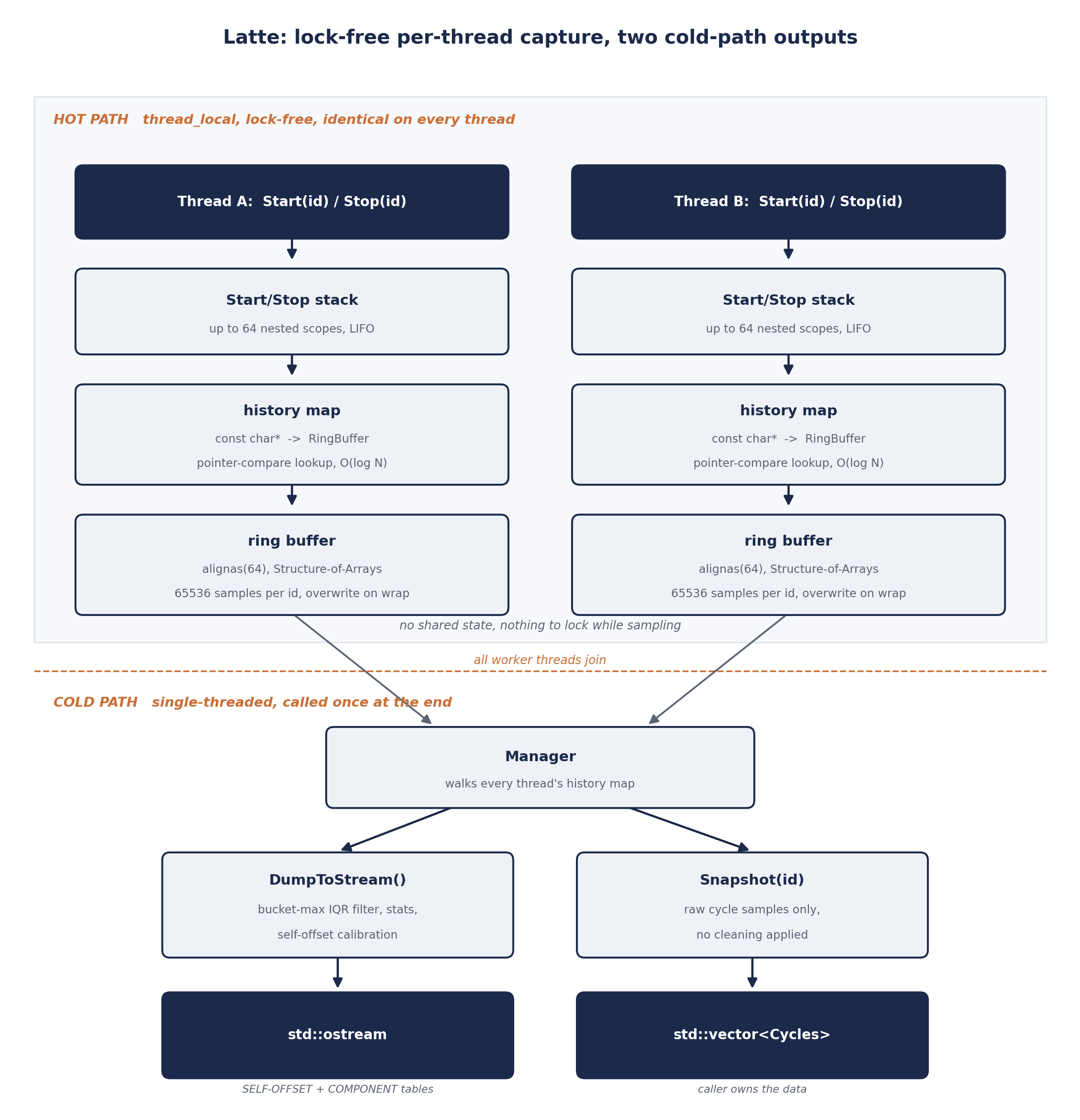

Hot path only writes. Cold path aggregates, sorts, and filters, once, after sampling stops.

Clock modes

RDTSC: no ordering guarantee. RDTSCP: prior instructions retire first. Full serialization needs RDTSCP + LFENCE, per Intel's benchmarking whitepaper.

Mode is per call site; Start and Stop can differ. The stack records the capturing mode, and calibration keys on the (start_mode, stop_mode) pair. A global mode would over-serialize everywhere or let reordering smear short measurements.

void ProcessOrder() {
    Latte::Fast::Start(__func__);   // ~30 cycles: one rdtsc + stack push
    // core logic
    Latte::Fast::Stop(__func__);    // ~30 cycles: rdtsc, pop, delta -> ring buffer
}

Scope identity without hashing

A string literal like "Physics_Engine" has a fixed address, so the pointer is the key. std::map<const char*, RingBuffer>: O(log N) pointer compares, no strcmp, no hashing.

IDs must be pointer-stable. Literals and static const char[] work. A temporary std::string::c_str() silently fragments one scope into several.

Per-thread storage

thread_local stack, map, and ring buffers per thread. First Start(id) allocates that ID's buffer; later calls are allocation- and lock-free. No thread can stall another.

Buffers are alignas(64) and Structure-of-Arrays: timestamps contiguous, separate from metadata, so a timing read pulls only timing data into L1 (Drepper).

65,536 samples per ID per thread (1 << BUFFER_PWR, power-of-two mandatory). Writes overwrite unconditionally: head = (head + 1) & BUFFER_MASK.

Two-phase recording

Start(): push ID, timestamp, mode onto a per-thread SoA stack (64 slots, nested scopes, no linear search). Stop(): pop, delta, write. Whole hot path. Running-stats profilers pay per sample instead.

Cold path forks:

• DumpToStream(): every thread, outlier filter, mean/median/stddev/skew/min/max/range, self-offset calibration, any std::ostream.
• Snapshot(id): raw std::vector<Cycles> for one ID across threads.

Outlier filter

A descheduled thread turns a 200 ns event into 100 us; one sample destroys a mean. Plain IQR over raw samples over-corrects: latency distributions are legitimately right-skewed.

Fix: bucket by 1,000, take each bucket's max, compute the IQR cutoff over those maxima. Spikes stand out; the real tail does not. Samples above the cutoff are counted (OUTLIER) and excluded.

02Trade-offs

03Benchmarks

AMD Ryzen 5 7600X (6 cores, 4.7 GHz base / 5.3 GHz boost), g++ -O3 -march=native, pinned core, 100,000 iterations per trial, 100 trials, one warm-up batch. Cycles measured via the TSC: probe and subject share a clock.

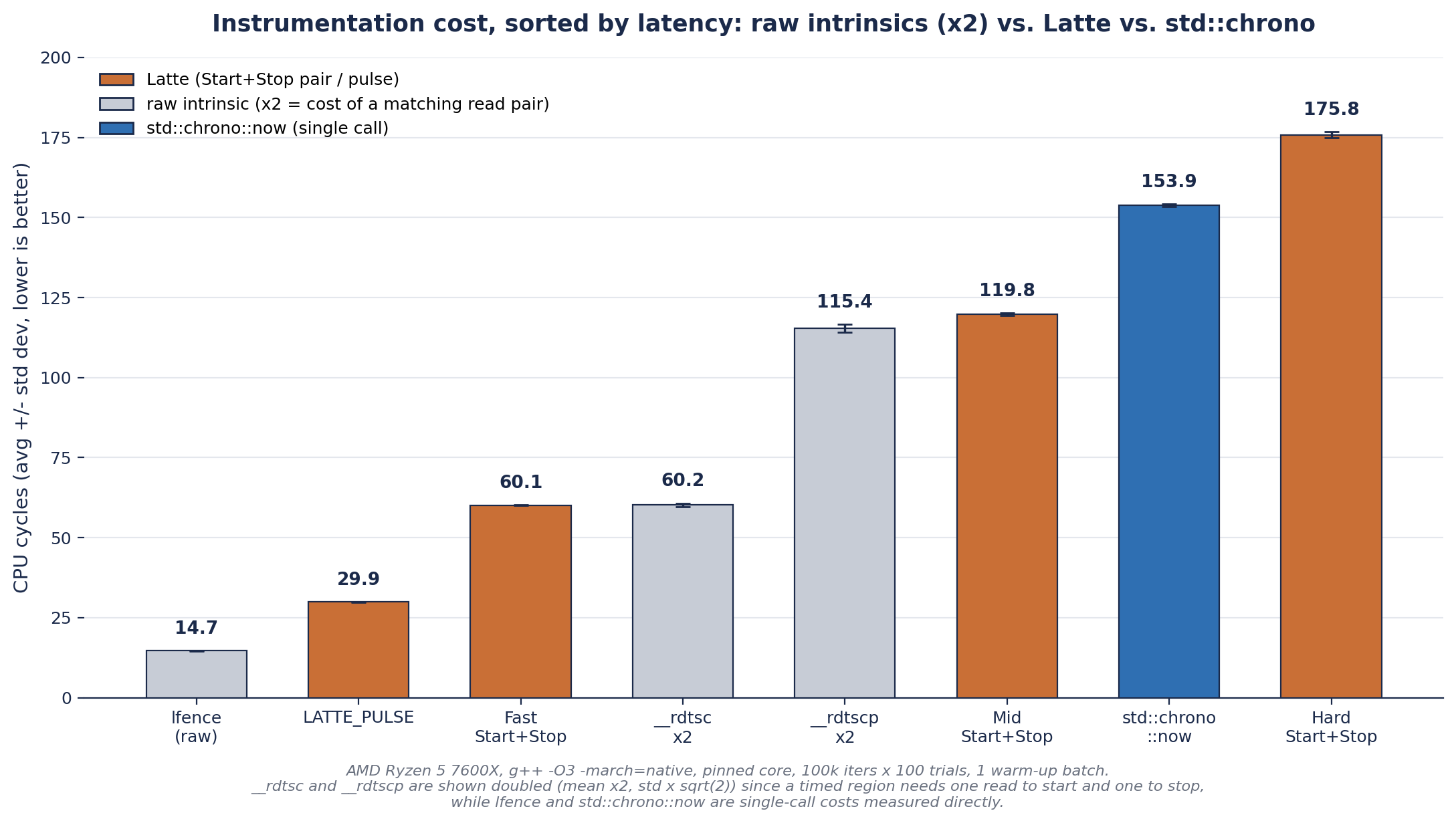

Latte numbers are Start+Stop pairs. The chart doubles __rdtsc and __rdtscp (mean x2, std dev x sqrt(2)); lfence and std::chrono::now stay single-call.

Each mode lands on its doubled raw primitive: Fast 60.1 vs two __rdtsc 60.2, so push/pop/delta/write costs nothing measurable. Mid sits ~4 cycles over two __rdtscp. Hard is the only mode with visible framework cost, mostly the four fence/read instructions. A full Fast measurement beats one std::chrono::now(): ~13 ns per region at 5.3 GHz.

Calibrated output, simulated trading pipeline, self-offset applied:

#==============================================================================================================#
| LATTE TELEMETRY [TIME][CAL]                                                                                  |
#==============================================================================================================#
| SELF-OFFSET H[Start] x W[Stop]                                                                               |
|                        F             M             H                                                         |
| F                0.21 ns      10.02 ns      10.02 ns                                                         |
| M                0.21 ns      10.02 ns      10.02 ns                                                         |
| H                0.21 ns      10.02 ns      10.02 ns                                                         |
| PULSE           10.02 ns                                                                                     |
|--------------------------------------------------------------------------------------------------------------|
| COMPONENT             SAMPLES       AVG    MEDIAN   STD DEV    SKEW       MIN       MAX     RANGE    OUTLIER |
|--------------------------------------------------------------------------------------------------------------|
| DP_Build_Total              1   38.07 s   38.07 s   0.00 ns    0.00   38.07 s   38.07 s   0.00 ns         0  |
| DP_StateLoop            65536  31.15 us  30.96 us   1.42 us   12.13  29.32 us  95.10 us  65.78 us         0  |
| Sim_Tick_Total           4997 226.79 ns 220.42 ns  76.04 ns    1.40 110.21 ns 821.55 ns 711.34 ns         3  |
| Sim_OrderFlow            4997  43.62 ns  29.63 ns  36.61 ns    2.02   9.59 ns 380.51 ns 370.91 ns         3  |
| Sim_AskLoop              1216   1.03 us 711.34 ns   1.06 us    2.14   0.00 ns   8.30 us   8.30 us         0  |
| Sim_BidLoop              1247   1.12 us 751.42 ns   4.21 us   32.56   0.00 ns 145.96 us 145.96 us         0  |
| Sim_RiskPnL              5000   6.24 ns   9.59 ns   4.67 ns   -0.57   0.00 ns  19.82 ns  19.82 ns         0  |
#==============================================================================================================#

SELF-OFFSET is Start/Stop back-to-back, empty body, per mode pair, subtracted per sample. Hence Sim_BidLoop's skew and Sim_Tick_Total's outliers are signal, not instrumentation noise.

04Sharp edges

Stop(id) ignores its argument and pops the most recent Start(), strictly LIFO. Cross two nested scopes: nothing crashes, one scope's time attributes to the other's ID.

DumpToStream() and Snapshot() during active sampling is undefined behavior. The manager's mutex covers only the global list of per-thread storage pointers. Sequence it: join workers, or hold a barrier, before reporting.

05Next version

• Buffer size and IQR bucket size become compile-time parameters; right sizes are workload-dependent.
• ARM via CNTVCT_EL0. Its ordering model differs from RDTSC/RDTSCP, so the Fast/Mid/Hard split needs rederiving.

06Further reading

• How to Benchmark Code Execution Times on Intel IA-32 and IA-64 Instruction Set Architectures: Paoloni, Intel, 2010. Basis for the Fast/Mid/Hard split.
• What Every Programmer Should Know About Memory: Drepper, Red Hat, 2007. Basis for alignas(64) and Structure-of-Arrays.
• fior512/Latte: single header, C++17, x86_64, MIT, v0.1.0.
